Product Preview

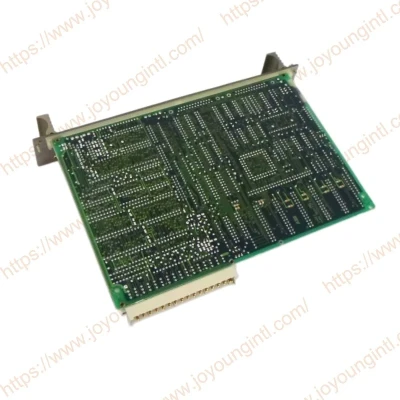

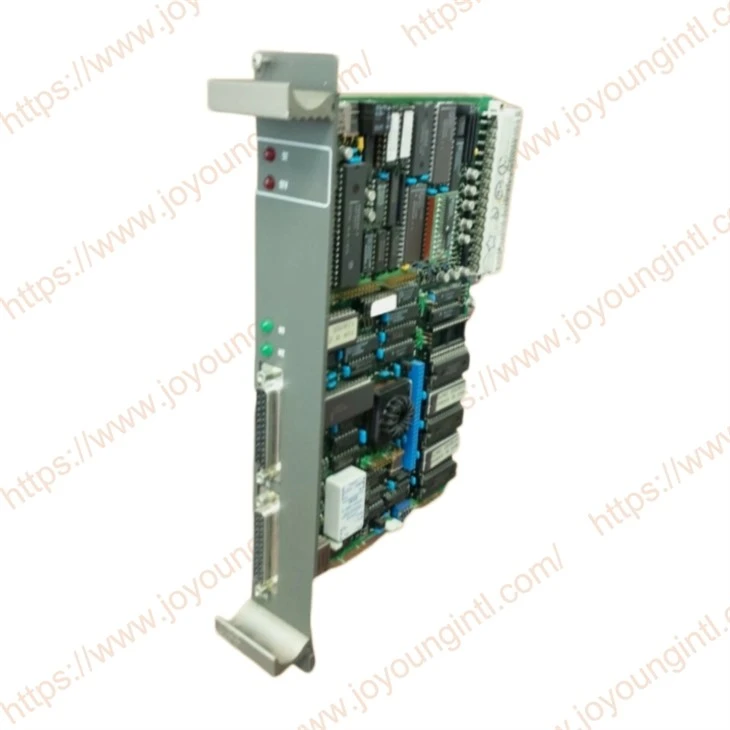

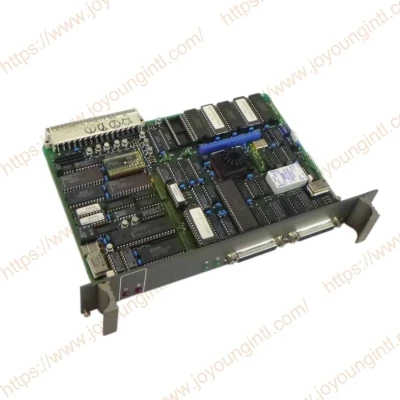

ABB 87TS01I-E GJR2368900R2340 is a communication coupling module in the ProControl P13 distributed control system (DCS) series of ABB Company. This module integrates industrial-level computing capabilities and process signal acquisition functions, and is mainly used for data processing, signal conversion, and real-time control tasks in industrial automation control systems.
Engineering Specifications
|
Manufacture |
ABB |
|
Model |
87TS01I-E |
| Part Number | GJR2368900R2340 |
|
Description |
Communication Coupling Module |
| System compatibility | ABB PROCONTROL / DCS |
|
Origin |
Germany/SWITZERLAND |
|
Dimension |
30*21*5cm |
|
Weight |
0.5kg |
Why choose 87TS01I-E (GJR2368900R2340)?
As an 87TS01I-E Communication Coupling Module designed for industrial automation scenarios, this device plays the role of a data hub and protocol bridge in the ProControl P13 system. Its primary purpose is not merely to perform signal conversion, but to establish a reliable communication link between different control levels, enabling effective data exchange between the upper-level system and the field equipment.
01
Acts as a communication bridge in the system
In the structure of an automated system, the 87TS01I-E Communication Coupling Module is more like a communication "bridge". It helps establish connections between the controller, I/O modules, and the system network, enabling different devices to exchange operational data and ensuring smooth information flow within the system.
02
Suitable for system structure expansion
When the control system needs to add new equipment or expand I/O points, the 87TS01I-E Communication Coupling Module can be added as a connection node to the system network, enabling the newly added equipment to be recognized by the control system and participate in data communication.
03
The structural design facilitates system maintenance
When installed in the control cabinet or system rack, the 87TS01I-E Communication Coupling Module adopts a modular structure. If the system requires maintenance or module replacement, engineers can usually complete the operation quickly, minimizing the impact on other parts of the system.m
87TS01I-E GJR2368900R2340 in the PROCONTROL distributed control system Products Description
The ABB PROCONTROL series system is an early but highly mature distributed control system (DCS), widely used in power plant automation, chemical control systems, and large industrial production lines. The core concept of the DCS system is to distribute control tasks to multiple control stations while achieving data sharing through communication networks.
In such an architecture, multiple interface modules are required to facilitate data exchange between devices, for example:
Controller interface module
Communication interface module
I/O Interface Module
Bus coupling module
Among them, 87TS01I-E belongs to the system communication coupling module, which is used to connect the communication network within the system.
FAQ
Q: Installation environment requirements
A: It is recommended to install it in an industrial control cabinet. The environmental conditions include:
Temperature range: -20℃ to 60℃
Humidity: < 95%
No strong corrosive gases
Q: Procurement Suggestions
A: For industrial users or purchasing personnel, when purchasing the 87TS01I-E, it is recommended to pay attention to the following points:
Confirm that the model is consistent with the order number.
Confirm system compatibility
Confirm module version
Select reliable suppliers
Confirm the warranty policy
Q: In which control systems is the 87TS01I-E module usually applied?
A: This module is mainly applied to ABB's PROCONTROL P series distributed control system (DCS).
In these systems, the module is used to connect:
Operator Station
Programming and Diagnosis System
Engineering Station
The upper-level computer or a third-party system
On-site control equipment
