YOKOGAWA AAI841-H00 S2 ATK4A-00

AAI841-H00 S2 is an analog input/output (I/O) module in the Yokogawa CENTUM VP distributed control system (DCS) series. This module adopts a hybrid design and features both analog input and output functions, making it suitable for industrial process automation scenarios where signal acquisition and control need to be carried out simultaneously.

1. Mixed signal processing capability
The AAI841-H00 S2 Analog I/O Module integrates 8-channel analog input and 8-channel analog output functions, enabling simultaneous reception of on-site sensor signals (such as 4-20mA) and output of control signals to the actuator, thereby reducing the number of required modules in the system.

2. HART communication support
The -H00 suffix version is equipped with HART (Highway Addressable Remote Transducer) protocol support, allowing for bidirectional digital communication via 4-20mA signal lines, enabling remote device configuration, diagnosis, and parameter adjustment without additional wiring.

3. Non-isolated design
This version adopts a non-isolated (Non-Isolated) channel design, with no electrical isolation between channels and between channels and ground. This design has certain cost advantages and is suitable for applications with good grounding conditions and low electromagnetic interference.

4. Dual redundant configuration support
The AAI841 Analog I/O Module supports dual redundant configuration. By using two modules with the same suffix code, a highly reliable I/O system can be constructed. When the main module fails, the backup module can automatically take over to ensure control continuity.

HART protocol compatibility: Supports remote management and diagnosis of intelligent instruments, improving equipment maintenance efficiency and reducing on-site inspection workload.

Fast data update: A 10ms update cycle can meet the real-time requirements of most process control loops, with a fast response speed.

Configuration flexibility: Supports dual redundant architecture, allowing selection of a single module or redundant configuration based on the reliability requirements of the application, and meeting the needs of different security levels.

Standardized interfaces: Uses Yokogawa's standard KS cables and ATK4A-00 adapters, having good interchangeability and compatibility with other components of the CENTUM VP system.

Compact structure design: Compact in size (about 0.26-0.32kg), suitable for high-density installation in control cabinets, and facilitating system integration.

Global technical support: As a mature product of Yokogawa Electric, it enjoys a complete global technical documentation, training system, and after-sales service network.

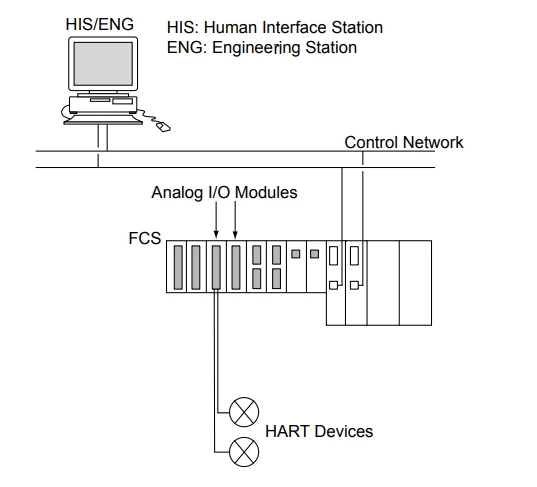

AAI841-H00 analog I/O module (with HART communication function) can be configured dual-redundant by placing the two modules in the adjacent slots (odd number and even number slots) on the same node unit.
