Product Introduction
Honeywell 2106B-1200 is a combustible gas sensor with a detection range of 0-100% LEL methane, other gas ranges may vary. Certified to the latest safety and performance standards such as ATEX/IECEx, it also complies with Russian GOST standards, etc., and has a wide range of applications.
Technical Specifications
|
Manufacture |
HONEYWELL |
|
Model |
2106B-1200 |
|
Part Number |
2106B-1200 |
|
Description |
SENSOR |
|
Origin |
UK |
|
Dimension |
15*10*4cm |
|
Weight |
0.2kg |
Product Details

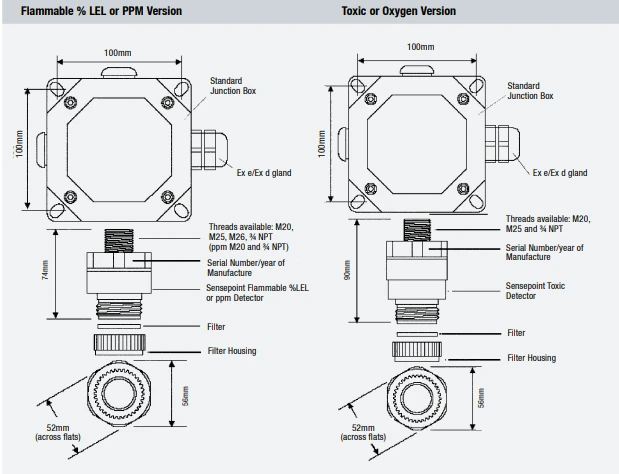

Installation in potentially explosive atmospheres is made by the use of a suitable Ex d or Ex e approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics' controllers or 3rd party DCS/ PLC systems. Both flammable and toxic versions are certified to the latest ATEX/ IECEx safety and performance standards.
The Sensepoint range of flammable, toxic and Oxygen gas detectors offer users a high quality, low cost solution to their industrial gas monitoring needs.
Ordering Information
| Sensepoint Combustible: | |
| 2106B1200 | Sensepoint 0-100% LEL Flammable Sensor M20 |
| 2106B1201 | Sensepoint 0-100% LEL Flammable Sensor M25 |
| 2106B1202 | Sensepoint 0-100% LEL Flammable Sensor M26 |
| 2106B1203 | Sensepoint 0-100% LEL Flammable Sensor M26 (VQ1AB pellistor) |
| 2106B1204 | Sensepoint 0-100% LEL Flammable Sensor ¾"NPT |
| 2106B1205 | Sensepoint ppm (0-10% LEL) Flammable Sensor M20 |
| 2106B1209 | Sensepoint ppm (0-10% LEL) Flammable Sensor ¾"NPT |
| Sensepoint Toxic | |
| 2106B1400 | Sensepoint H2 S 0-20 ppm Toxic Sensor M20 |
| 2106B1401 | Sensepoint H2 S 0-50 ppm Toxic Sensor M20 |
| 2106B1402 | Sensepoint H2 S 0-100 ppm Toxic Sensor M20 |
| 2106B1500 | Sensepoint H2 S 0-20 ppm Toxic Sensor M25 |
| 2106B1501 | Sensepoint H2 S 0-50 ppm Toxic Sensor M25 |
| 2106B1502 | Sensepoint H2 S 0-100 ppm Toxic Sensor M25 |
| 2106B1700 | Sensepoint H2 S 0-20 ppm Toxic Sensor ¾"NPT |
| 2106B1701 | Sensepoint H2 S 0-50 ppm Toxic Sensor ¾"NPT |
| 2106B1702 | Sensepoint H2 S 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1405 | Sensepoint CO 0-100 ppm Toxic Sensor M20 |
| 2106B1406 | Sensepoint CO 0-200 ppm Toxic Sensor M20 |
| 2106B1407 | Sensepoint CO 0-500 ppm Toxic Sensor M20 |
