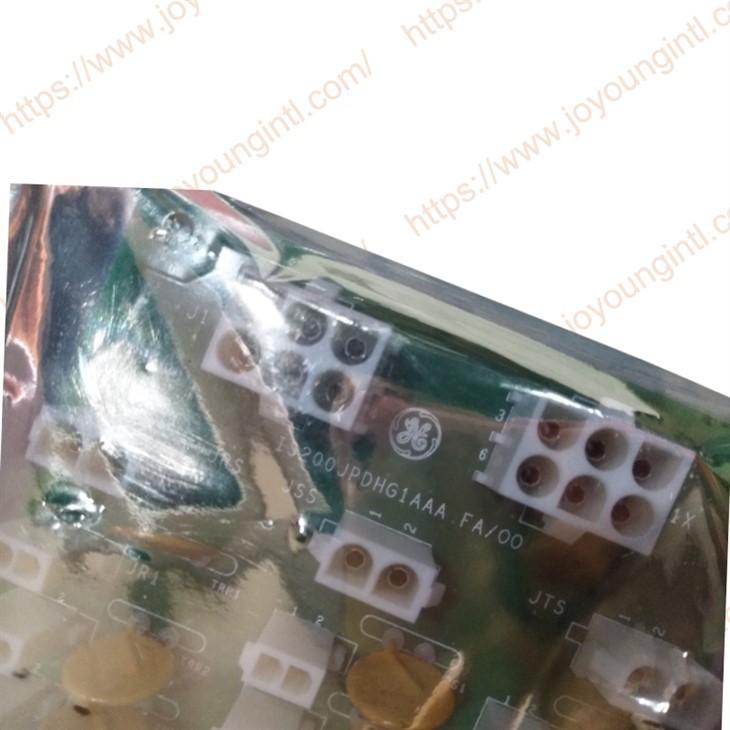

The Distribution Card(IS200JPDHG1A) board provides 28 V dc power to 24 Safety I/O modules and three Ethernet switches from a 28 V dc supply. Additional JPDHs can be connected in a daisy-chain arrangement to provide power to more I/O modules as required. The circuit for each I/O module connector is protected with a positive temperature coefficient fuse device.
Technical Specifications
|
Manufacture |
General Electric(GE) |
|
Model |
IS200JPDHG1A |
| Part Number | IS200JPDHG1AAA |
|
Description |
Mark Distribution Card
|
|
Origin |
USA |
|
Dimension |
25*25*8cm |
|
Weight |
0.32kg |
Product Details
IS200JPDHG1AAA Installation：
Mount JPDH on a vertical surface by inserting #6 machine screws through the mounting holes at each corner of the board. Insert Mate-N-Lok connectors as described in the following figure. The 6-pin and larger 2-pin connectors have a nominal rating of 600 V and 13 A, while the smaller two-pin connectors have a nominal rating of 600 V and limited by fuse rating to 0.8 A max.
Operation：
JPDH is designed to provide TMR I/O packs with adequate 28 V dc power distribution while taking up as little space as possible. Additional JPDHs can be connected in a daisy-chain arrangement through the unfused J1X connector.

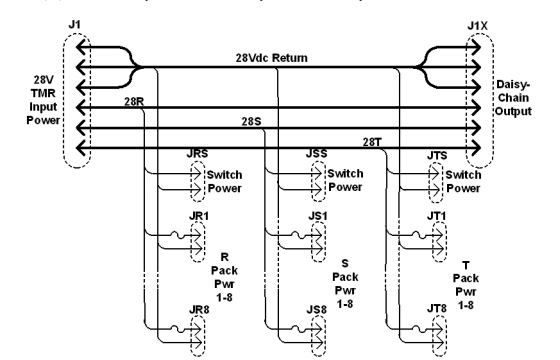

The 6-pin J1 connector brings in three separate 28 V dc feeds on three different pins for triple redundancy. The return current is common among the TMR and daisy-chain feeds and is brought in on the remaining three pins. The following figure explains how the R, S, and T 28 V dc power is distributed by JPDH to the I/O packs and Ethernet switches.
JPDH has 24 identical output circuits to provide power to the individual I/O packs. The R, S, and T feeds each provide power to eight circuits. Each I/O pack circuit includes a positive temperature coefficient fuse device for branch circuit protection.The board also has three identical unfused output circuits to provide power to each Ethernet switch.
JPDH Specifications
|
Item
|
JPDH Specification
|
|
Inputs
|
One 6-pin connection for 28 V dc power input Mate-N-Lok 600 V, 13 A
|
|
Outputs
|
Three 2-pin connections for Ethernet switches Mate-N-Lok 600 V, 13 A
Twenty-four 2-pin connections for I/O packs Mate-N-Lok 600 V, 0.8 A at 70 °C
|
|
Output Fuses
|
1.6 A at 20 °C (derated to 0.8 A at 70 °C) positive temperature coefficient fuse or equivalent on each I/O
pack output
|
|
Ambient Rating for Enclosure
Design†
|
-40 to 70ºC (-40 to 158 ºF)
|
|
Relative Humidity
|
5 – 95% non-condensing
|
|
Safety Standards
|
UL 508A Safety Standard Industrial Control Equipment
CSA 22.2 No. 14 Industrial Control Equipment
EN 61010-1 Safety of Electrical Equipment, Industrial Machines (Low Voltage Directive)
|
|
Mounting
|
DIN-Rail, card carrier mounting
Base mounted steel bracket, 4 holes
|
