Product Introduction

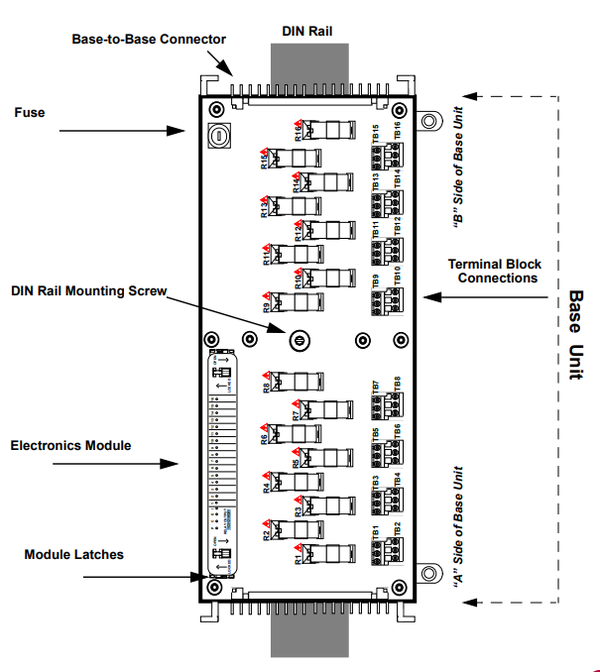

1C31219G01 provides an interface between the Ovation Controller and the mechanical relays that are used to switch high AC and DC voltages at high currents. This module plugs into the Relay Output base assembly.
Technical Specifications
|
Brand |
WESTINGHOUSE |
|
Model |
1C31219G01 |
|
Part Number |
1C31219G01 |
|
Description |
Ovation™ Relay Output Module |
|
Origin |
USA |
|
Dimension |
15*15*4cm |
|
Weight |
0.15kg |
Product Details
1C31219G01 has real-time monitoring of output status, fault diagnosis and alarm functions to help users quickly find and solve problems. This module is widely used in various industries such as steel, petroleum, chemical, electric power, building materials, machinery manufacturing, automobile, textile, transportation, environmental protection, etc. It is used to monitor and control the status of external devices in industrial automation, such as sensors, switches, etc., and control various types of equipment in the control system, such as motors, valves, relays, etc., to achieve logic control and signal acquisition.
Relay Output Electronics Module Specifications (1C31219G01)
| Description | Value |
| Number of channels | 16 |
|
Blown fuse detection 1 Operating voltage range |
18V ≤ auxiliary supply voltage ≤ 25.5V |
| Module power |
Main: 1.88 W typical, 2.5 W maximum Auxiliary: 0.3 W typical, 0.35 W maximum |
| Operating temperature range | 0 to 60°C (32°F to 140°F) |
| Storage temperature range | -40°C to 85°C (-40°F to 185°F) |
| Humidity (non-condensing) | 0 to 95% |
