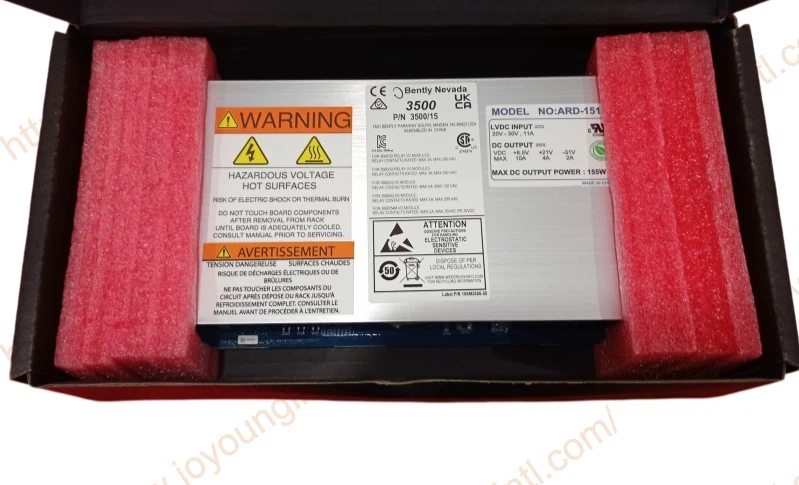

Bently Nevada 114M5330-01 generally accepts a wide range of input voltages from 88 to 140 Vdc, and can provide the appropriate output current based on system configuration and load requirements to meet the power requirements of multiple modules working simultaneously.
This module provides unified power support for the following components:
Vibration monitoring module
Axis displacement monitoring module
Speed detection module
Communication module
| Technical Specifications | |
|
Manufacture |
BENTLY NEVADA |
|
Model |
3500/15 |
|
Part Number |
114M5330-01 |
|
Description |
Low Voltage DC Power Supply Module |
|
Origin |
USA |
|
Dimension |
26*16*5cm |
|
Weight |
1.34kg |
Power supply core of the 3500 system
114M5330-01 is not a single-point power supply, but:
The rear connector supplies power to the entire rack.
It supports the operation of multiple monitoring modules simultaneously.
Redundant power supply function
114M5330-01 supports a dual power redundancy configuration:
Support 1+1 redundant installation
Real-time status monitoring and diagnosis function
The module has the capabilities of self-diagnosis and status feedback:
LED status indication (power normal/fault)
Output status monitoring
Fault alarm support
The power supply distribution method for the 3500/15 power module is as follows:
Input power → Power module
The external DC power first enters the power input module, where the primary power connection and protection are completed.
Power conversion and voltage stabilization
After stabilization, the direct current is distributed through the rack backplane to all 3500 modules, including:
Vibration monitoring module
Speed monitoring module
Communication interface module
System interface module
Usage Instructions
How to identify a faulty power supply?
+
-
Common judgment methods:
LED abnormality (red light)
Module power failure
System alarm
Is it internationally certified?
+
-
Supports certifications such as CE and UL, and complies with international industrial standards.
What will the system do when there is a malfunction?
+
-
Power LED red light or off.
System module restart or communication interruption
Redundancy alarm (Redundancy Fault)
The rack cannot recognize some modules
How to determine whether the power module is functioning properly
+
-
OK indicator light (green light stays on continuously indicates normal operation)
System diagnostic software (3500 Rack Configuration)
Redundancy status monitoring
Input voltage test
