ABB PC D232 A101 3BHE022293R0101 PEC80-CIO, as a core component of the exciter's input/output, receives voltage, current, and temperature signals from sensors. Based on a preset control strategy, it outputs control signals to the exciter's actuator to regulate the excitation current and ensure the generator's output voltage. Manufactured with industrial-grade materials and rigorously tested for quality, it is suitable for complex industrial conditions such as dust and large temperature differences. Its modular design, coupled with remote monitoring and diagnostic functions, facilitates on-site installation and commissioning, and helps personnel quickly locate faults and reduce downtime for maintenance.
Technical Specifications
|
Manufacture |
ABB |
|
Model |
PC D232 A101 |
| Part Number | 3BHE022293R0101 |
|
Description |
PEC80-CIO |
|
Origin |
Switzerland |
|
Dimension |
40*25*15cm |
|
Weight |
0.7kg |
Product Details
ABB PC D232 A101 3BHE022293R0101 for AC 800PEC Control System, the PECView is a PC-based commissioning and service tool. It provides a complete set of features for analyzing, monitoring, and maintaining Simulink applications running on an AC 800PEC system.
The Process Panel Builder is the standard engineering tool for ABB's Process Panel product line. It provides a wide choice of operator panels for all requirements that can be integrated easily into an AC 800PEC control system, such as:
• Easy customization of operator graphics using a comprehensive library
• Standardized faceplate concept to minimize configuration time.
Large-scale power converters and drives must be reliable, fast, and precise. That calls for a control system with outstanding performance, such as the AC 800PEC.
But why should the same controller not cope with slow processes, too, such as cooling circuits, monitoring, and balance of plant?
The AC 800PEC does it all: when it comes to high-speed processes in an industrial environment with all related ancillary tasks, it is the ideal controller.

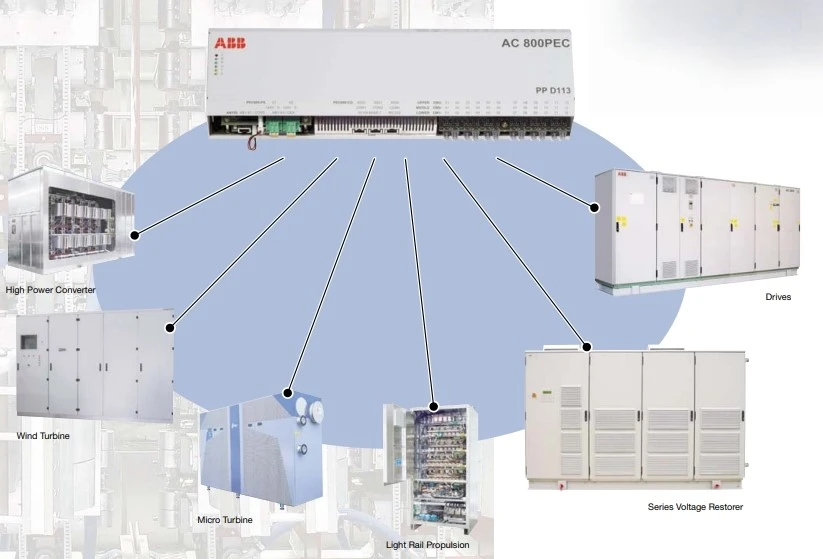

The AC 800PEC is ABB's high-end process control system and belongs to the ControlIT product line. The AC 800PEC is the optimum solution for combining：
• the high-speed control requirements of power electronics applications
•Low-speed process control tasks are usually carried out by separate PLC units.
The AC 800PEC controller is configured and programmed using Control Builder M, ABB's well-established programming tool, and MATLAB®/ Simulink® with Real-Time Workshop®.
Modular configuration：
The modular-design AC 800PEC comes with:
• Units mounted onto a DIN rail or equipped for direct wall mounting
• Hardware and communication modules ABB according to process needs
• Any combination of fast and slow I/Os, large and small topologies, installed locally and remotely.
Hardware：
AC 800PEC hardware is optimized for power electronics control:
• Optical connection between controller and process I/O
• Fast peripheral I/O devices for control and measurement
• Program and data stored in Flash memory, no battery backup needed
• Compatible with standard ABB S800 I/O devices
• Suitable for field installation.
Software：
The AC 800PEC is programmed with:
• ABB Control Builder M programming environment based on the IEC 61131-3 standard
• Optimized fast application code development based on MATLAB®/Simulink® with Real Time Workshop®.
