ABB PM511V08 processor module has high performance and reliability, can handle large-scale control tasks, supports multiple programming languages such as LD, ST, FBD, and other IEC 61131-3 standards, and users can write and modify control logic to achieve customized application requirements. It provides a friendly user interface and tools, easy to use and configure. It also has diagnostic and monitoring functions, which simplify the system maintenance and troubleshooting process.
Technical Specifications
|
Manufacture |
ABB |
|
Model |
PM511V08 |
| Part Number | 3BSE011180R1 |
|
Description |
Processor Module |
|
Origin |
Sweden |
|
Dimension |
27*27*3cm |
|
Weight |
0.76 kg |
Product Details

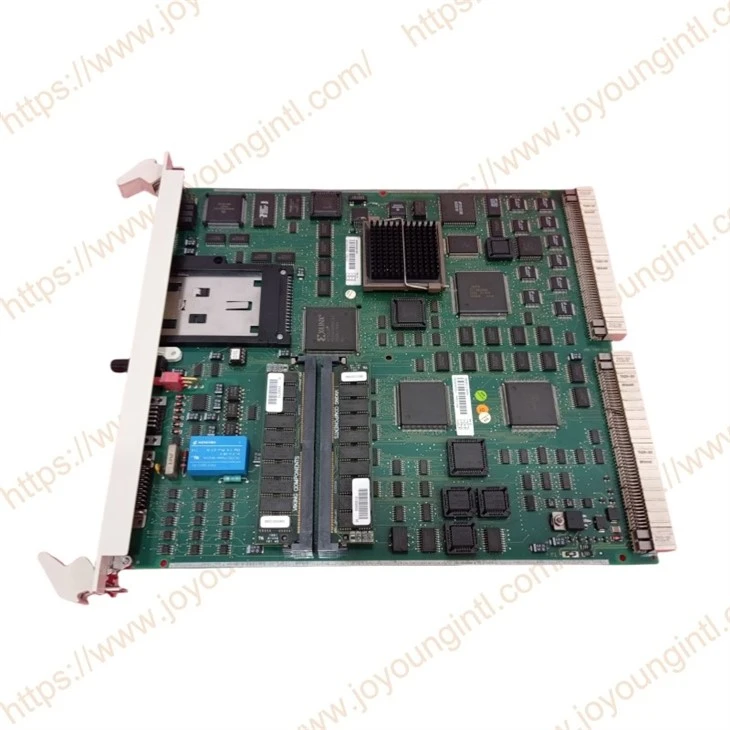

ABB PM511V08 3BSE011180R1 can execute control logic, process input signals, and generate corresponding output signals. It can handle complex control tasks and realize monitoring and adjustment of automation systems. It also has powerful data processing capabilities and can execute various algorithms and operations. In addition, it supports multiple communication interfaces and can be connected to external devices such as sensors and actuators to realize data transmission and integrated control.
The processor module exists in two versions which have the same type designation on the front,PM511V, and can be separated by the label on the component side of the module.
*PM511V08 with 8 Mbyte read/write memory (RAM)
*PM511V16 with 16 Mbyte read/write memory (RAM).
PM511V08 is upgradable to PM511V16 with a special kit containing 16 Mbyte RAM.
Redundant Processor Modules
If a failure is detected in the active unit, it is halted, and the backup unit takes over in less than
25 ms, totally bumpless. The two processor modules in a redundant configuration must have
the same RAM-size.
Communication interfaces and a few other functions are realized as submodules which fits into a slot on a submodule carrier. Modules can be exchanged while the system is running.New modules can also be inserted live. Every unit has a red LED to indicate fault.
|
Submodule
|
Description
|
|
CI531
|
RS-232-C communication interface for printer, EXCOM or MasterView 320.
Each interface holds two RS-232-C lines.
|
|
CS513
|
MasterBus 300/300E communication. Each interface holds one line.
|
|
CI532V01
|
RCOM/RCOM+ communication. Each interface holds two lines
|
|
CI532V02
|
MODBUS communication with DB element MS. Each interface holds two lines.
|
|
CI532V03
|
Siemens 3964(R) communication. Each interface holds two lines.
|
|
CI534V02
|
MODBUS communication with DB element MVB. Each interface holds two lines.
|
|
CI534V04
|
Allen-Bradley DF1 communication with DB element MVB. Each interface holds two lines.
|
|
CI535V24
|
RCS protocol RP570 Master
|
|
CI535V29
|
RCS protocol RP571 Master |
|
CI535V23
|
RTU protocol RP570 Slave
|
|
CI535V26
|
RTU protocol IEC870-5-101 Unbalanced
|
|
CI535V30
|
SPA Server protocol SPA Bus
|
|
CI535
|
Free-programmable MVI communication with DB element MS. Each interface holds two lines.
|
|
CI538
|
Free-programmable MVI communication with DB element MVB. Each interface holds two lines.
|
|
CI541V1
|
PROFIBUS-DP communication. Each interface holds one line.
|
|
CI572
|
LONWORKS Network communication, 1250 kbit/s. Each interface holds two lines.
|
|
CI543
|
GCOM communication. Each interface holds one line.
|
|
CI570
|
MasterFieldbus communication. Each interface holds one line with cable redundancy capabilities.
|
|
CI522A
|
Advant Fieldbus 100 communication. Each interface holds one line with cable redundancy capabilities.
|
|
MB510
|
Program card interface for extra system software or application backup
|
| PU535 |
Free-programmable module
|
