EA402 913-402-000-013-A2-E090-F0-G000 Cheap Cable

The TQ402 and TQ412 transducers can be matched with a single EA402 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.

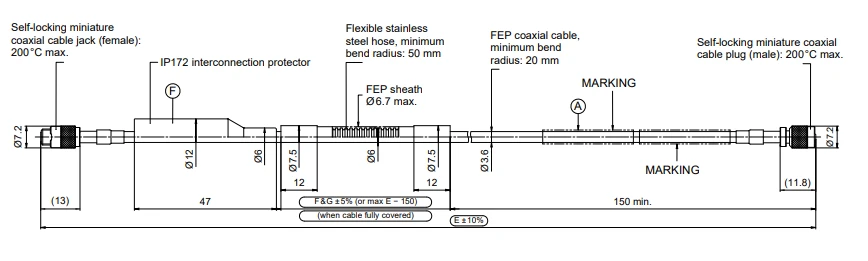

EA402 913-402-000-013 extension cable:
1. System composition: Based on the TQ403 non-contact sensor and IQS900 signal conditioner, it constitutes a calibrated proximity measurement system with interchangeable components.
2. Structural material: The active part inside the sensor probe is a coil made of polyamide-imide (Torlon®), the sensor body is made of stainless steel, and the target material must be metal.
3. The sensor body is only available with metric threads. The TQ403 comes with an integral coaxial cable with a self-locking micro coaxial connector at the end, and integral and extension cables can be ordered in various lengths.
4. Signal conditioner features: The IQS900 signal conditioner contains a high-frequency modulator/demodulator that provides the sensor with a drive signal to generate an electromagnetic field for measuring the gap. The circuit is made of high quality components and is housed in a painted aluminum housing with improvements such as SIL 2 "as designed", enhanced frame voltage immunity, electromagnetic immunity and emissions, lower output impedance, optional diagnostic circuitry, original output pins, test input pins, new DIN rail mounting adapter and removable screw terminal connectors for easy installation.
