Description
Technical Parameters
Product Introduction

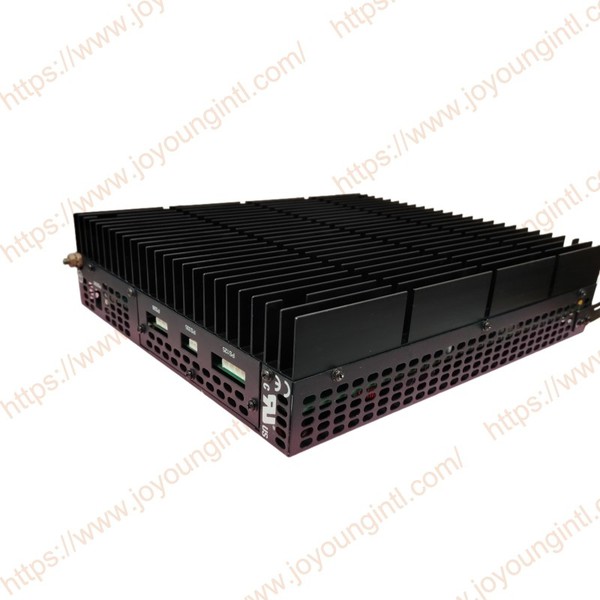

The IS2020RKPSG2A is a VME rack power supply module for GE Industrial Systems' Mark VI turbine control system family.
Technical Specifications
|
Manufacture |
General Electric(GE) |
|
Model |
IS2020RKPSG2A |
| Part Number | IS2020RKPSG2A |
|
Description |
POWER SUPPLY |
|
Origin |
USA |
|
Dimension |
45*35*10cm |
|
Weight |
8kg |
Product Details
General Electric IS2020RKPSG2A
Series: Mark VI EX2100-POWER SUPPLY
Features:
Output Voltage: Provides a variety of DC output voltages, including +5V, ±12V, ±15V, and ±28VDC, to the VME backplane. An optional 335VDC output is also available for powering flame detectors connected to the TRPG.

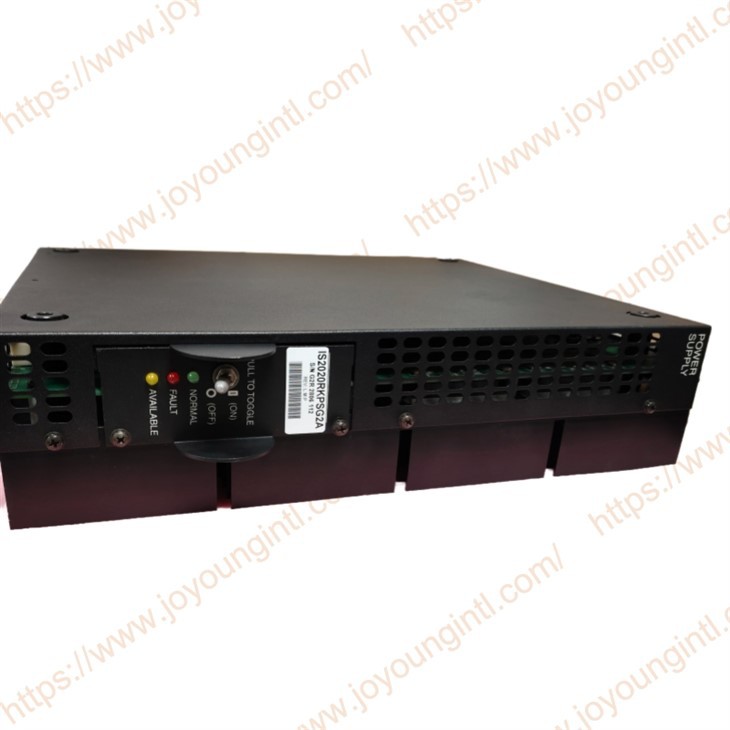

Status Indicator: The front panel features three LEDs. The yellow LED indicates input power status. The red LED illuminates when input power is present, the power switch is on, and a fault has been detected. The green LED illuminates when input power is present, the power switch is on, and no fault has been detected.
Fault Reset: The front panel power switch is latching and can be used to enable or disable the output voltage. When the red LED illuminates, indicating a fault, the power switch can be cycled to clear the fault, provided the condition that caused the fault no longer exists.
Redundant Operation: Supports redundant operation for enhanced system reliability.
Series: Mark VI EX2100-POWER SUPPLY
Features:
Output Voltage: Provides a variety of DC output voltages, including +5V, ±12V, ±15V, and ±28VDC, to the VME backplane. An optional 335VDC output is also available for powering flame detectors connected to the TRPG.
Status Indicator: The front panel features three LEDs. The yellow LED indicates input power status. The red LED illuminates when input power is present, the power switch is on, and a fault has been detected. The green LED illuminates when input power is present, the power switch is on, and no fault has been detected.
Fault Reset: The front panel power switch is latching and can be used to enable or disable the output voltage. When the red LED illuminates, indicating a fault, the power switch can be cycled to clear the fault, provided the condition that caused the fault no longer exists.
Redundant Operation: Supports redundant operation for enhanced system reliability.

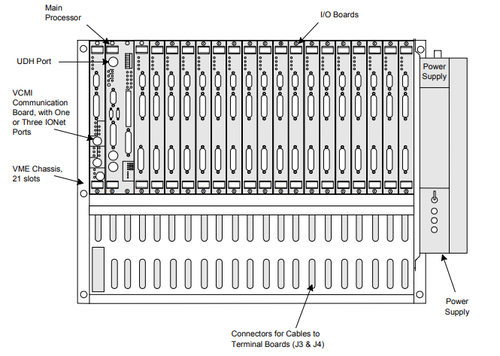

The IS2020RKPSG2A, a VME rack power supply module, is installed on the side of the VME control and interface rack. It provides multiple DC voltage outputs for the VME backplane, including +5V, ±12V, ±15V, and ±28VDC. An optional 335VDC output is also available for powering flame detectors connected to the TRPG. Other components in the Mark VI system, such as control cards and termination boards, that require these voltages also require power from this power supply module.
