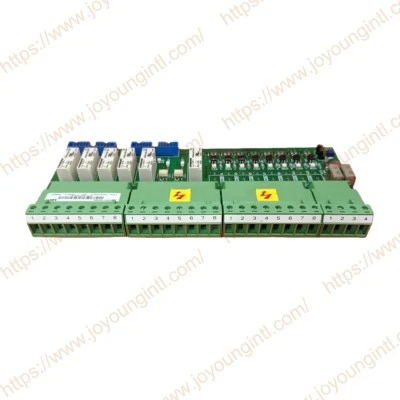

SDCS-IOB-21 3BSE005176R0001 Digital I/O Board

Electrical Parameters
Operating voltage: 48 V DC (typical, for digital input/output)
Digital input range: 24 - 48 V DC input signal (filtered to enhance stability)
Input/Output points: 8 digital I/O (commonly used for signal processing in field devices)
Isolation method: Optical isolation (Optically Isolated Channels)
Mechanics and Environment
Installation: Installed in a specific slot within the drive cabinet (standard ABB cardboard size)
Temperature range: Refer to similar models that can meet the requirements of standard industrial environments (0°C to +55°C)
Humidity: 5% - 95% RH, non-condensing environment
Protection level: IP20 (typically used for the interior of control cabinets)
Size / Shape: Standard industrial board format, suitable for integration within control cabinets or drive systems.

Industrial-grade durability
3BSE005176R0001 SDCS-IOB-21 Digital I/O board ard design complies with industrial environment standards, capable of withstanding temperature variations of 0–55°C and high humidity conditions, while also having anti-vibration and shock resistance. Suitable for complex on-site environments such as power plants, metallurgy, and petrochemicals.
Compatibility and integration advantages
Native compatibility with ABB SDCS series drive controllers, eliminating the need for additional interface conversion or programming adaptation, shortening the system integration cycle, nd reducing engineering costs.
Signal response optimization
The input/output channels have undergone filtering, processing, and anti-jitter design, enabling precise acquisition of transient signals and ensuring the real-time accuracy of control decisions.
Maintenance and diagnostic convenience
The SDCS-IOB-21 Digital I/O board design of the board cards facilitates quick replacement. Additionally, the self-check and diagnostic functions integrated with the control system can promptly identify abnormal signal channels, reducing system downtime.
Reduce the total life cycle cost of the system
By achieving high reliability and ease of maintenancereducingce on-site manual intervention and downtime risks, lowering long-term operation and maintenance costs, and simultaneously enhancing the stability of the control system.
Safety meets standards
Adopts industrial standard safety design, complies with industrial automation safety specifications such as IEC61131/IEC61508, ensuring the safety of equipment and operators.

DC drive control system
SDCS-IOB-21 Digital I/O board is commonly used in the ABB SDCS series of DC drive systems, providing a digital signal interface for the controller. It can collect the status of on-site sensors, switches, and relays, and reliably transmit the signals to the controller to achieve precise control of the motor or drive equipment.
Industrial Automation Monitoring
In automation systems of power plants, chemical plants, metallurgical equipment, etc., SDCS-IOB-21 can connect multiple on-site switch quantity signals, such as flow switches, level switches, temperature alarm contacts, etc., to monitor the equipment status, trigger alarms or联动 control.
Protection and Safety Interlock System
The optical isolation design of the board card makes it suitable for safety-critical applications, such as preventing erroneous actions caused by electrical interference. It can be used as a digital input acquisition device in the DC drive protection circuit to achieve fault isolation and safety interlock.
Distributed I/O Expansion
When there are insufficient digital channels in the control cabinet, the SDCS-IOB-21 Digital I/O board can be connected as an expansion module to the existing control system to achieve digital input/output expansion. It is suitable for the centralized management of multiple switch signals in large systems.
Transient signal acquisition
For the acquisition of transient events such as high-speed switches, pulse signals, proximity switches, etc., this module can filter out interference and ensure the accuracy of the signals. It is suitable for scenarios such as monitoring the start and stop status of motors and providing mechanical positioning feedback.
Equipment Maintenance and Diagnosis
The board card supports modular installation and quick replacement, enabling quick replacement during equipment maintenance or fault troubleshooting, thereby enhancing system availability. Combined with the control system's diagnostic function, it can detect abnormal I/O channels in real time.
